AluminumPowerglide.Com

The Transmission Builder's One Stop for all your Hard to Find OEM and High Performance PowerGlide Parts

Pumps Input Shafts Drums Gear Sets Overhaul Kits & Clutches Cases Pans Linkage Converters

Cases

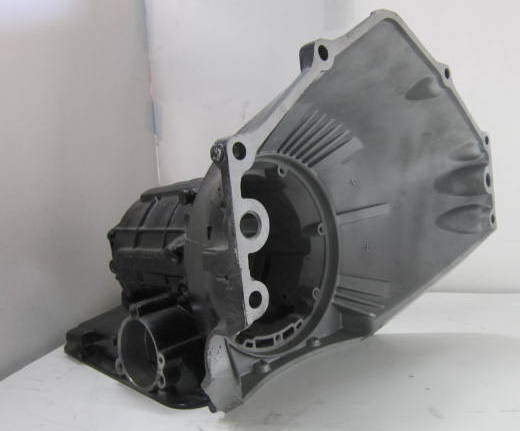

Painted Case Shown

Used Stock Case $100.00 + $45 Shipping.

AS IS. May have some welded repairs or helicoils. NO REFUNDS.

Please contact us for stock before ordering

Stock Case- Bead Blasted, New Case Bushing & Painted $175.00 + $45 Shipping

AS IS. May have some welded repairs or helicoils. NO REFUNDS.

Limited Stock Please contact us before ordering

OE and aftermarket Powerglide cases have something in common. The reverse clutch steels eat into the case when the reverse clutch is used as a transmission brake. The result is either the displaced metal will end up in the filter and valve body, or the reverse steel plates will hang - up in the grooves and effect your reaction time. Alto Products Corp. is happy to introduce an alternative to replacing the sometimes very expensive case. The case savers are spring steel clips that fit into the case to give the steel plates a smooth hard surface to interact with. The case saver clips are designed to be installed into all 6 pockets to distribute the force of the trans brake evenly throughout the case. Some Powerglide cases need extra attention; this is covered in the instruction sheet.

Alto Case Saver Clips Set of 6

$21.00

Powerglide Cases

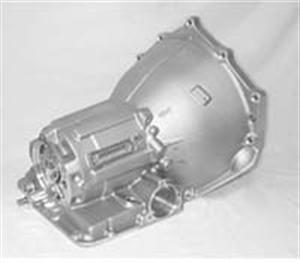

Reid Case

This is simply the best 1-piece Powerglide transmission case available. You will not find another case with a better combination of strength, simplicity, light weight, and unsurpassed quality in casting and machining. Here's why:

  • No internal or external shield required because the case itself is SFI 4.1 Certified.
  • No flexplate shield required because the bellhousing is SFI 30.1 Certified.
  • Uses all stock and aftermarket internals; no oddball parts.
  • Bellhousing is part of the case just like the Powerglide so all machining alignment remains perfect.
  • Made by a permanent mold process from heat treated aircraft grade aluminum. This process is stronger, more ductile, and more accurate than competitors' brittle sand castings.
  • Oil pan flanges are thickened to stiffen case. Beefed up oil pump area prevents front case distortion under high horsepower. Minimizes flexing which causes gear misalignment and breakage. This case does not leak!
  • Oil pump mounting bolt holes Heli-Coiled to prevent thread failures.
  • Patented adjustable transbrake release. Adjustment bolt varies both the quickness and the rate of release which varies the reaction time and the hit of the tires.
  • Predrilled for double dump transbrake.
  • Redesigned oil passages radically improves release time of the transbrake and allows instant application.
  • Patented reverse piston bleed hole vents air from piston area and increases transbrake consistency.
  • No need for internal or external shields or bottom straps.
  • Each case is thoroughly inspected at every step of its production. You can be assured that you will not have the problems associated with porosity and misalignment from poor castings or inferior machining as with other cases.

PG1500 Superglide transmission case $1050 Out of stock ETA TBD

PG1500R Superglide transmission case w/ roller hub $1100 Out of stock ETA TBD

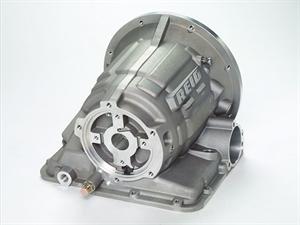

Reid Racing's 2-piece Superglide transmission case allows use behind all popular engine combinations.


Starting with the time proven 1-piece Superglide, Reid Racing engineers decided against the "cut it in half" approach and specifically designed this case to be used as a 2-piece unit. The full 360 degree reinforced mounting flange provides the needed rigidity and stiffness, while extra thickness in critical areas adds strength to the rear of the case and eliminates the need for an internal liner. Unlike our sand-cast competitors, our permanent mold casting process is used for extremely accurate, tough, porosity-free cases. Adapter bellhousings and flexplates are available for most popular engine combinations.

  • No internal or external shields required; case is SFI 4.1 Certified
  • Uses all stock and aftermarket internals; no oddball parts.
  • Bellhousings available for Chevrolet, Buick, Olds, Pontiac, Ford, and Mopar engines. Indexing ring on the oversized flange properly centers bellhousing.
  • Front pump can be installed with or without the bellhousing attached.
  • Made by a permanent mold process from heat treated aircraft grade aluminum. This process is stronger, more ductile, and more accurate than competitors' brittle sand castings.
  • Oil pan flanges are thickened to stiffen case. Beefed up oil pump area prevents front case distortion under high horsepower. Minimizes flexing which causes gear misalignment and breakage. This case does not leak!
  • Oil pump mounting bolt holes heli coiled to prevent thread failures.
  • Patented adjustable transbrake release. Adjustment bolt varies both the quickness and the rate of release which varies the reaction time and the hit of the tires.
  • Predrilled for double dump transbrake.
  • Redesigned oil passages radically improves release time of the transbrake and allows instant application.
  • Patented reverse piston bleed hole vents air from piston area and increases transbrake consistency.
  • No need for external shields or bottom straps.
  • Each case is thoroughly inspected at every step of its production. You can be assured that you will not have the problems associated with porosity and misalignment from poor castings or inferior machining as with other cases.
  • This new case gives dramatic strength increase over the standard sized powerglide output shaft and has a high performance bronze bushing.
  • For use with any of Reid's 7 bellhousings.
PG2000 2 piece Superglide case , back half Limited Stock Please contact us before ordering $925.00
PG2000R 2 piece Superglide case, back half w/ roller hub Limited stock Please contact us before ordering $975.00
PG2000-400B 2 piece Superglide case, back half w/ bushing for TH400 output shaft Out of stock ETA July 2019 $975.00
PG2000-400R 2 piece Superglide case, back half w/ roller bearing for TH400 output shaft Out of stock ETA July 2019 $975.00

Reid Bellhousings

BH001

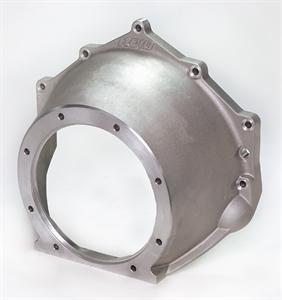

Chevrolet BH001 Shown

Cast from high-strength aluminum and heat treated for additional toughness, the bellhousing passes the stringent SFI 30.1 certification and is approved with no external shields required. The bell features an open bottom for easy converter access, a reduced diameter for better floorboard clearance, and a contoured mounting flange to properly match the rear of the engine block.

BH001 Chevrolet fits all 90 degree V8 and 4.3L V6 $350.00

BH030 Buick/Olds/Pontiac $415.00
BH010 Small Block Ford 1966 and later 289-302-351c-351w-5.0L & 5.8L $415.00
BH020 Big Block Ford 429 & 460 $415.00
BH050 Modular Ford $415.00
BH040 Big Block Mopar 361-383-400-413-400B & RB icl. 426 hemi $415.00
BH060 Small Block Mopar 318, 340, and 360 $415.00

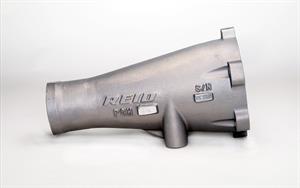

Reid Tailshaft Housings

BH001



The Reid Racing, Inc. tailshaft housings are designed to fit both the REID Superglide and the stock GM Powerglide transmissions. 5 times stronger than stock, yet weighs only 4-1/2 pounds

  • Bolt in replacement - length and crossmember mounting flange is exactly the same as stock
  • Double lip seal
  • Relocated vent puts an end to the problem of trans fluid spraying out of breather
  • Completely pre-assembled
  • Includes a hardware kit with everything you need to bolt it on

Special Note: No speedometer cable provision is supplied.

PGH1B Powerglide Tailhousing With Bushing Exact stock tailhousing replacement using a Teflon coated driveshaft yoke bushing; a stock powerglide type yoke can be used. $199.00

PGH1R Powerglide Tailhousing With Roller Bearing uses a needle rolling bearing to transfer maximum horsepower. A modified stock driveshaft yolk or special hardened undersize yolk is required $199.00

PGH2B Powerglide Tailhousing With Turbo 400 Bushing used when the Superglide has a Turbo 400 output shaft. A standard Turbo 400 driveshaft bushing is installed and a stock Turbo 400 type yoke can be used $199.00

PGH2R Powerglide Tailhousing With Turbo 400 Roller Bearing used when the Superglide has a Turbo 400 output shaft. The driveshaft yoke is supported by a roller bearing instead of a bushing. A special hardened oversize Turbo 400 yoke is required $229.00


ATI & TCI aftermarket cases and bellhousings also available for purchase. Don't want to buy an aftermarket case? Trans-Shields available from TCI & TSI. Contact us for ordering details.

Not sure of what part you need?
Click here for Powerglide schematic

All Prices Subject to Change Without Notice.

"How To" DVDs

Referrals and Links

Ready to Check Out?

Flat shipping fee is added at check out. Contact us direct for purchasing multiple items.

Most Items dropped shipped from manufacturer

Questions? Contact Us
